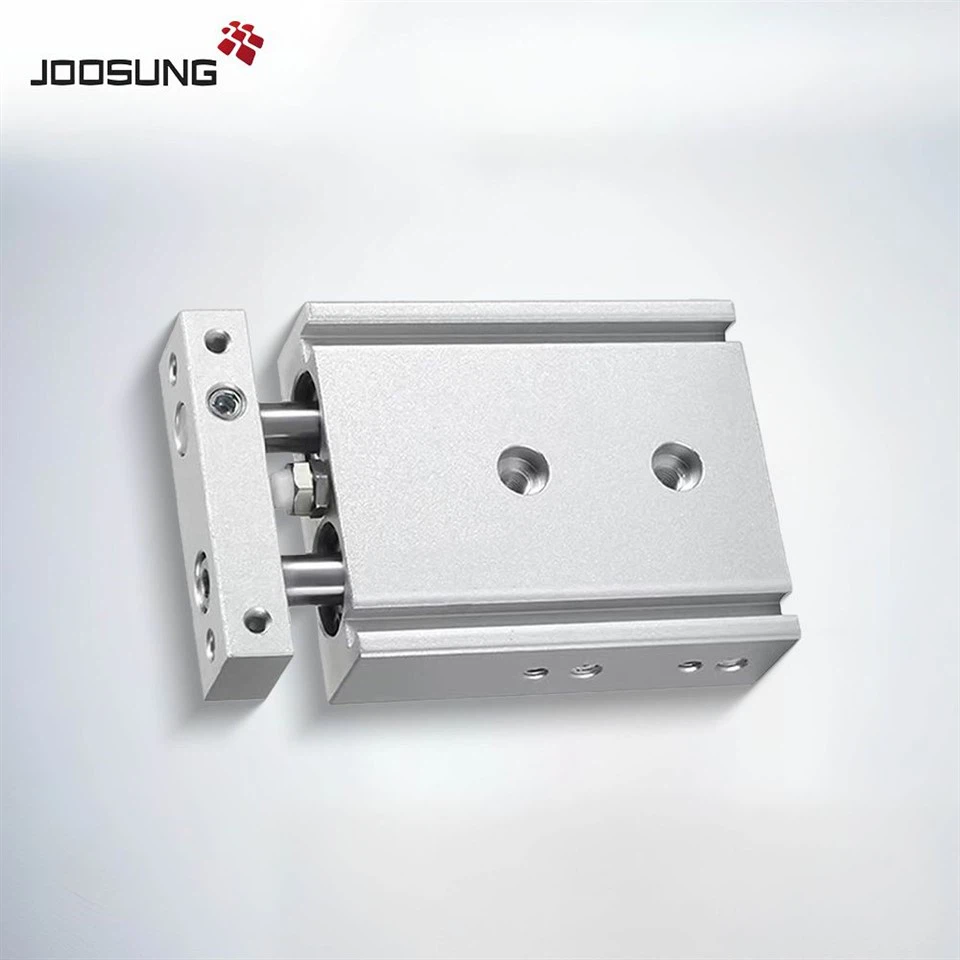

Tha anAirtac TR sreaththa asiolandair le slat dùbailte àbhaisteach JISa' cothlamadh draibh agus treòrachadh taobh a-staigh aon bhuidheann sleamhnachaidh toinnte. Tha e a’ nochdadh asiostam treòrachaidh sleamhnachaidh leudaichtea tha ag obair gun lubrication, a’ lìbhrigeadh àrd mionaideachd agus seasmhachd. Tha an structar slat dùbailte aige a’ lughdachadh sracadh deiridh agus a’ cur casg air cuairteachadh, a’ toirt sàr-mhath an aghaidh feachdan cromadh is toinneamh.
Tha an dealbhadh a 'ceadachadhstàladh ioma-uachdairtro thuill treòrachaidh agus a’ toirt a-steach cnap rèiteachaidh stròc aig an aghaidh gu buaidh cuisean. Tha puirt adhair dùbailte air gach taobh a’ tabhann sùbailteachd sreap, agus tha magnet air a thoirt a-steach mar ìre àbhaisteach airson amalachadh mothachaidh fuaigheil.
|
Mar a dh’ òrduicheas tu TR Sreath Pneumatic Sorcadair |
|||
|
TR |
20 |
50 |
S |
|
Modail |
Meud toll |
Stròc siolandair |
Magnaid |
|
TR: Siolandair slat càraid (seòrsa cleasachd dùbailte) |
6 10 16 20 25 32 |
S: Le magnet |
|
Feum air siolandair teann lestiùireadh mionaideach agus ionracas structarail àrd?
Tha anSreath dà-shlat Airtac TR-Slat-stiùirichtea’ tabhann coileanadh earbsach, àite-èifeachdach airson àrainneachdan fèin-ghluasaid dùbhlanach.
Cuir fios thugainn an-diughairson dàta mionaideach, modalan 3D CAD, agus luachan làn-leasaichte OEM-!
|
Sònrachadh: |
|||||
|
Meud toll: |
10 |
16 |
20 |
25 |
32 |
|
Seòrsa cleasachd: |
Cleasachd dùbailte |
||||
|
Fliuch: |
Adhair (ri bhith air a shìoladh le eileamaid sìoltachain 40μm) |
||||
|
Brùthadh obrachaidh: |
0.2 ~ 1.0MPa |
0.15 ~ 1.0MPa |
|||
|
Bruthadh dearbhaidh: |
1.5MPa (215 psi) |
||||
|
Teòthachd (ìre): |
-20~70 |
||||
|
Raon luaths (mm/s): |
30~500 |
||||
|
Stròc a ghabhas atharrachadh (mm): |
-5~0 |
||||
|
Seòrsa Cushion: |
Binneadair |
||||
|
Fulangas nach eil a’ cuairteachadh: |
±0.4 ceum |
±0.3 ceum |
|||
|
Meud port: |
M5X0.8 |
PT1/8 |
|||
|
Modail sreath |
Modalan rim faighinn |
|
TR6 sreath |
TR10-10S, TR10-20S, TR10-30S, TR10-40S, TR10-50S |
|
TR10 sreath |
TR10-10S, TR10-20S, TR10-30S, TR10-40S, TR10-50S, TR10-60S, TR10-70S, TR10-80S, TR10-90S, TR10-100S |
|
TR16 sreath |
TR16-10S, TR16-20S, TR16-30S, TR16-40S, TR16-50S, TR16-60S, TR16-70S, TR16-80S, TR16-90S, TR16-100S, TR16-125S, TR16-125S |
|
TR20 sreath |
TR20-10S, TR20-20S, TR20-30S, TR20-40S, TR20-50S, TR20-60S, TR20-70S,TR20-80S,TR20-90S,TR20-100S,TR20-125S,TR20-125S |
|
TR25 sreath |
TR25-10S, TR25-20S, TR25-30S, TR25-40S, TR25-50S, TR25-60S, TR25-70S,TR25-80S,TR25-90S,TR25-100S,TR25-125S,TR25-125S |
|
TR32 sreath |
TR32-10S, TR32-20S, TR32-30S, TR32-40S, TR32-50S, TR32-60S, TR32-70S,TR32-80S,TR32-90S,TR32-100S,TR32-125S,TR32-125S |
